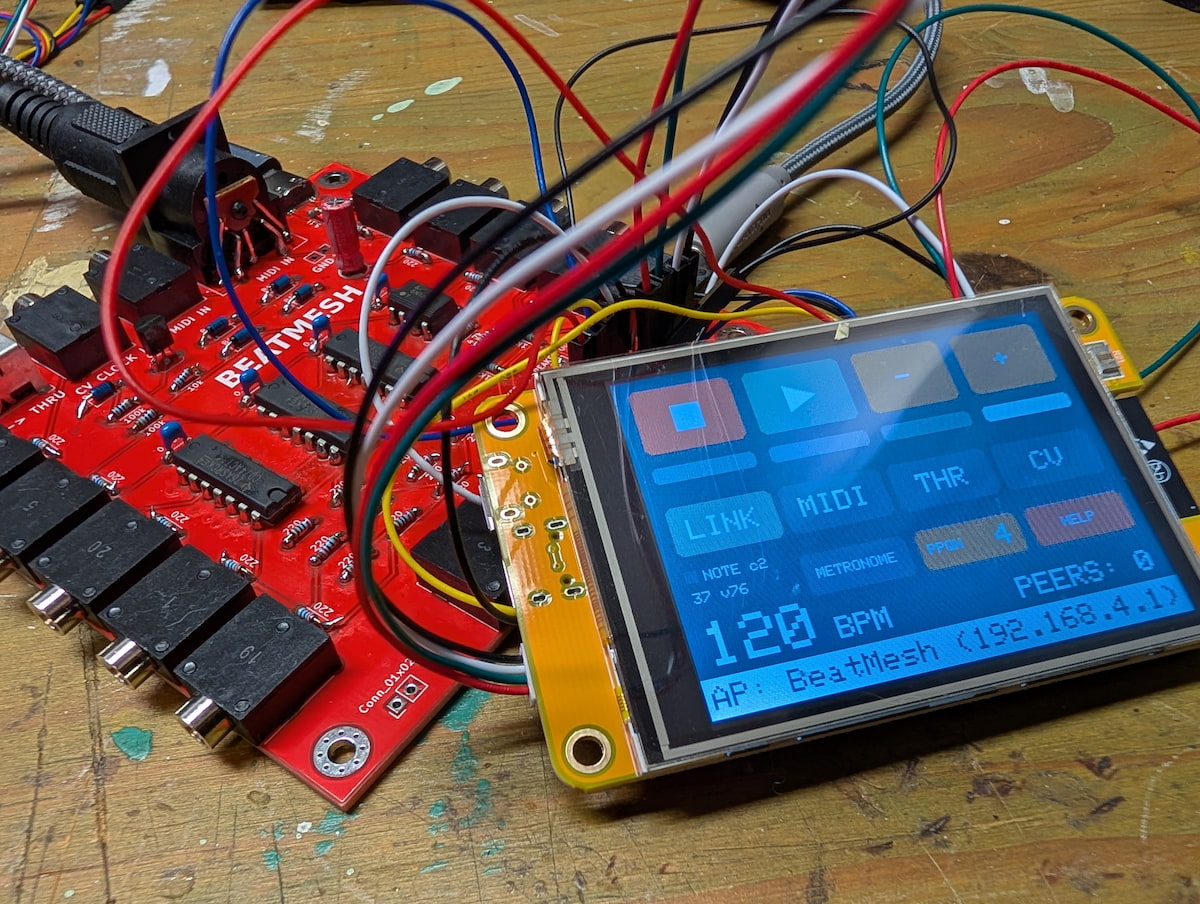

BeatMesh

A module to synchronize via Ableton Link, MIDI, or CV clock.

Features

  • 10x MIDI Out ports
  • Flexible Routing: Send raw MIDI to all 10 outputs OR filter to keep only the MIDI clock.
  • CV Integration: CV clock and reset outputs.
  • Ableton Link: Synchronize seamlessly over WiFi.
  • OTA Firmware Updates: Upload new firmware (.bin) directly from the web portal, no cable needed.

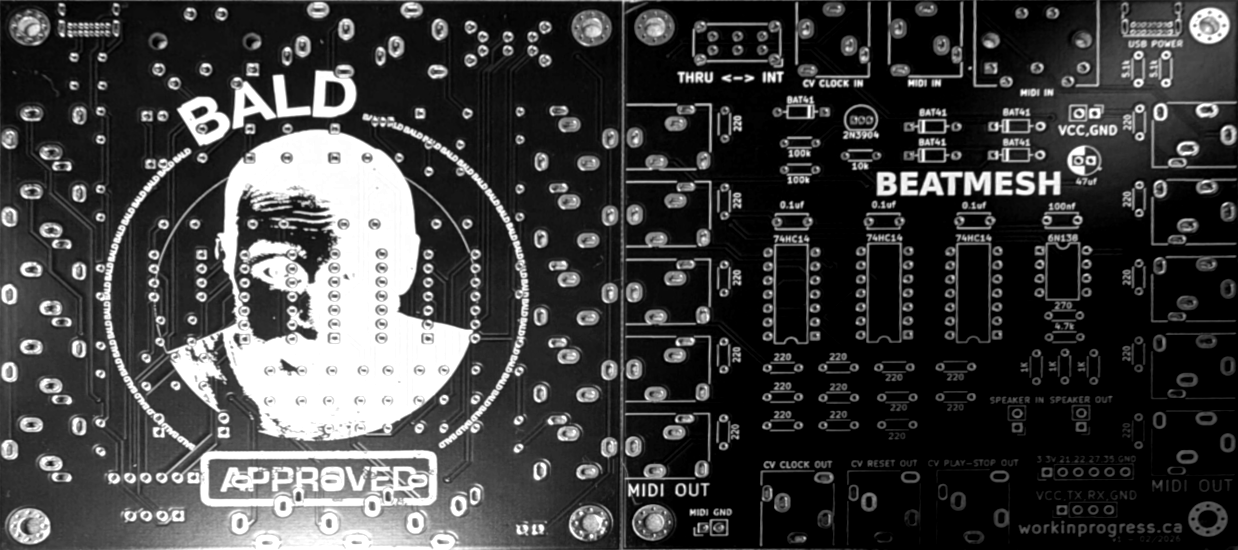

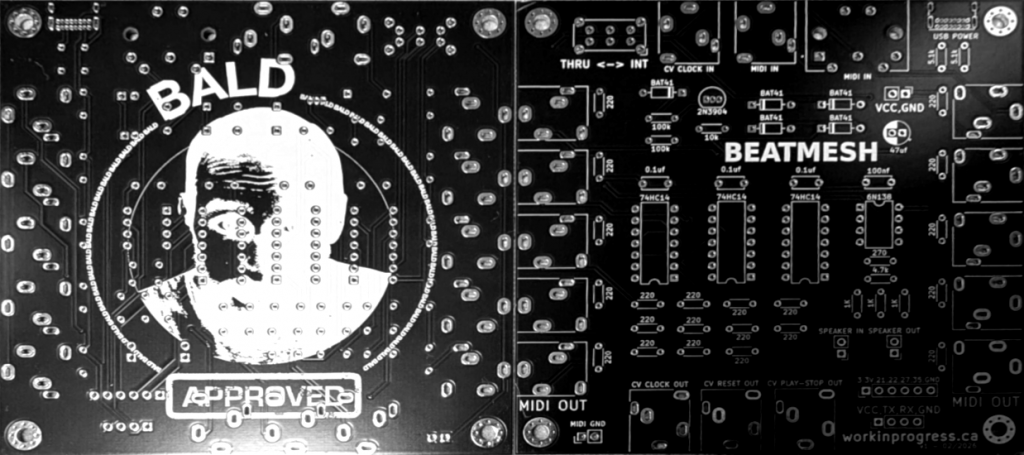

  • Easy Soldering: All through-hole components (except USB-C, see below*), beginner-friendly assembly.

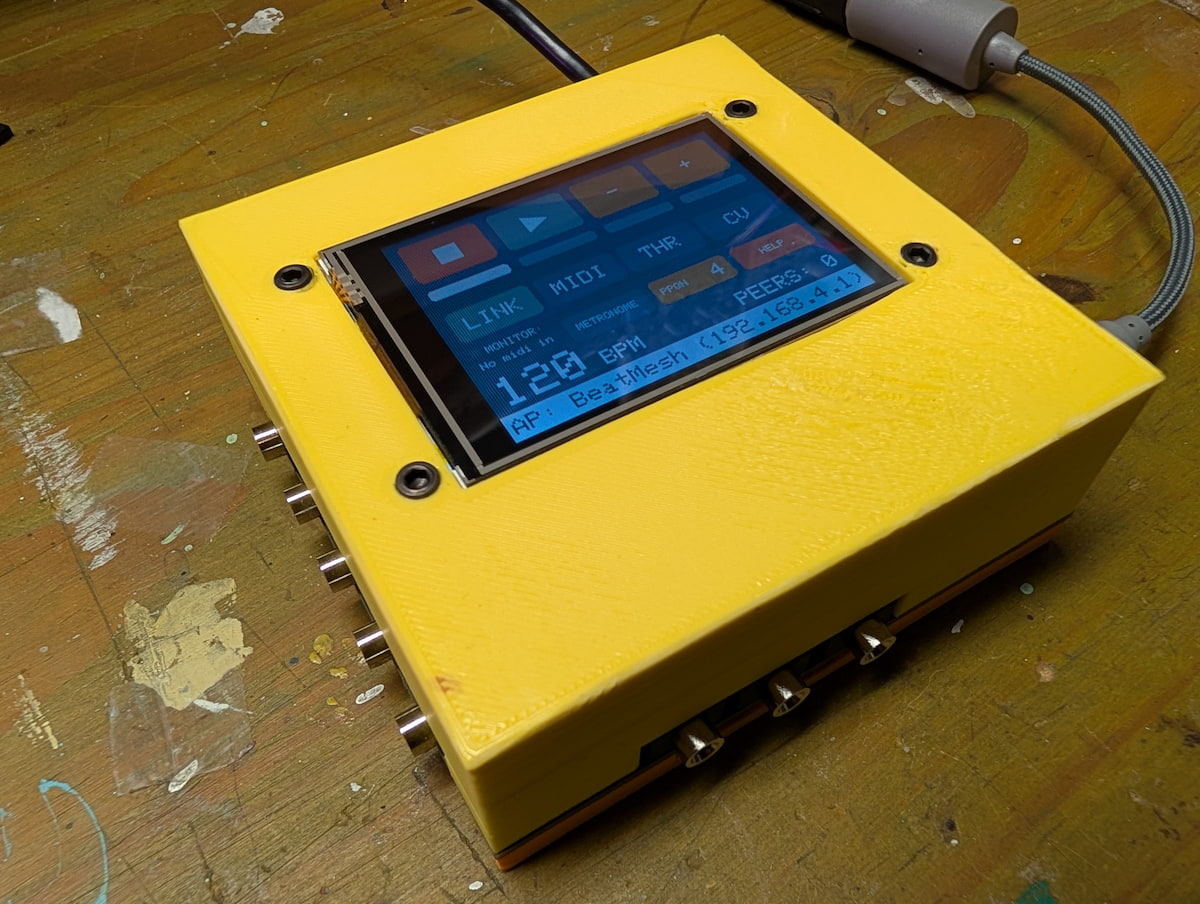

  • Easy to Print: Two-piece 3D-printed case (top and bottom STL), no supports needed, held together with M3 screws.

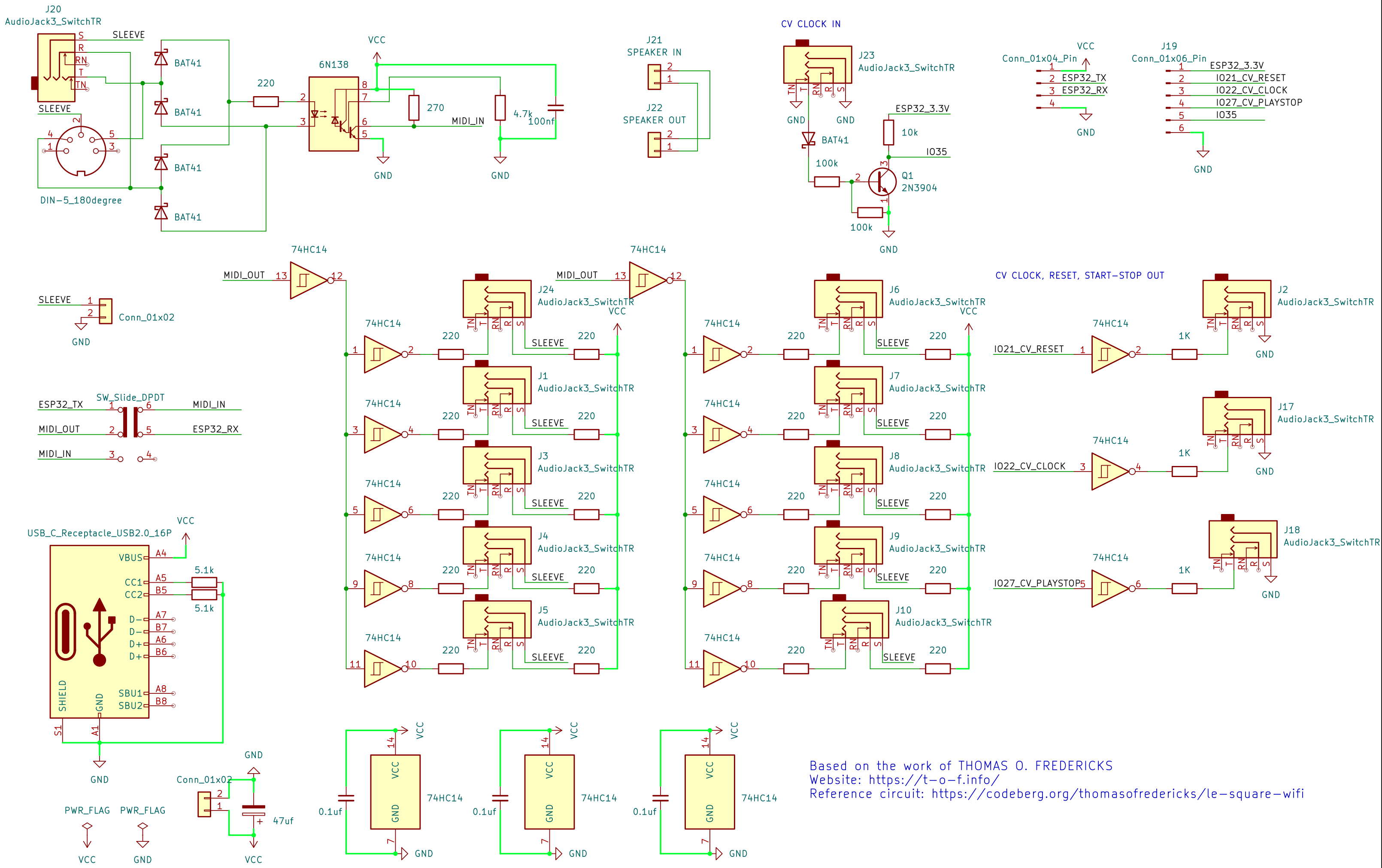

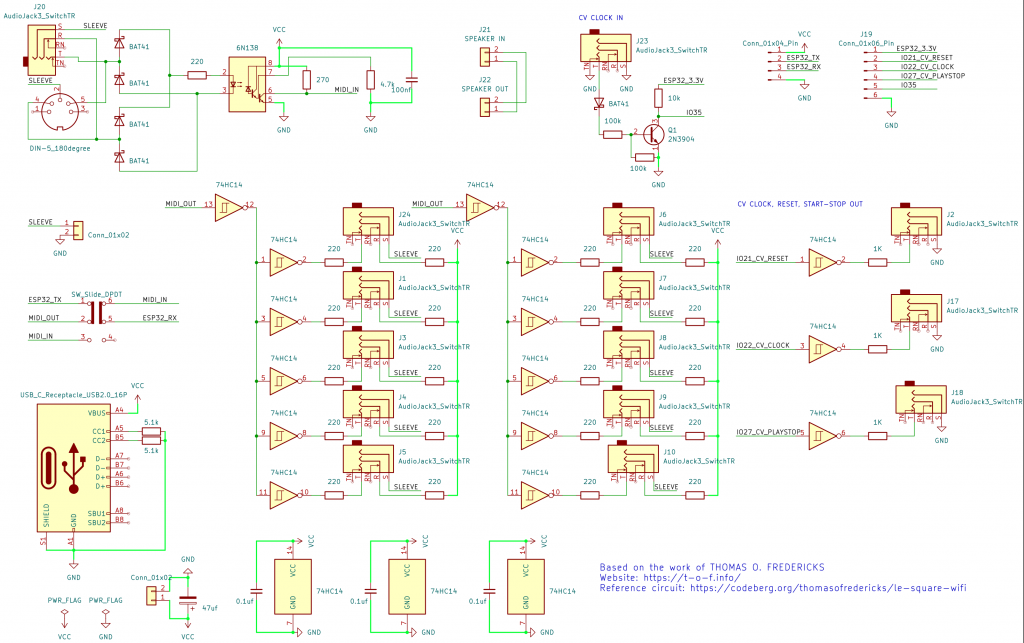

Repository with code, PCB and 3d print
